Moroso Wheel Studs are manufactured from high-grade SAE 8740 steel to withstand shear loads of 190,000 psi (which exceeds Grade 8 specifications). Moroso Wheel Studs are designed expressly for use with thick-hub racing wheels for both drag and oval track racing. All Moroso Wheel Studs now feature a "quick start dog end" for easier starting of lug nuts. Packed in sets of five.
NOTE: All stud lengths are measured from the base of the knurl to the end of the stud.
WARNING! Do not use any of these wheel studs with wheel spacers.
MOR46150 Wheel Studs 7/16"-20 x 2-7/8" Press-in, .480" dia. knurl and quick start dog end, fits most late GM drum brake applications. Standard hole size: .472" to .479"
MOR46160 Wheel Studs 7/16"-20 x 2-7/8" Press-in, .560" dia. knurl and quick start dog end, fits most late GM disc brake and early drum brake applications. Standard hole size: .552" to .559"
MOR46180 Wheel Studs 1/2"-20 x 3" Press-in, .615" dia. knurl and quick start dog end, fits most disc brake Fords front and rear and Chrysler front. Standard hole size: .606" to .613"
MOR46190 Wheel Studs 1/2"-20 x 3" Press-in, .685" dia. knurl and quick start dog end, fits most Chrysler rear with 1/2" stud. Standard hole size: .676" to .683"
MOR46220 Wheel Studs 1/2"-20 x 3" Press-in, .563" dia. knurl and quick start dog end for use in 1/2" Frankland hubs. Standard hole size: .554" to .561"
MOR46240 Wheel Studs 5/8"-18 x 3" Press-in, .672" dia. knurl and quick start dog end for oval track applications. Standard hole size: .663" to .670"
MOR46200 Wheel Studs 1/2"-20 x 3" Screw-in, fits all aftermarket axles with 1/2"-20 threads.

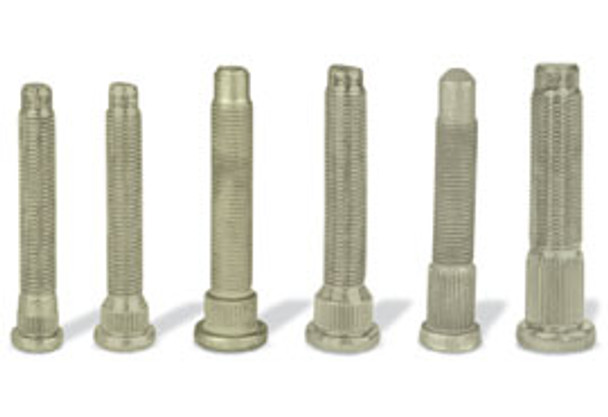

Moroso Wheel Stud
